DP 370
DP 370 are self-priming deep well pumps suitable for pumping clean water. They are particularly suitable for domestic applications such as pumping water from deep well, pool, the automatic distribution of water by surge tanks and pressure switch, gardening, and increasing water pressure.
WORKING CONDITIONS
- Max Temperature of Fluid up to +50 C
- Max Pressure up to 10 bar
- Max Ambient temperature up to 40 C
TECHNICAL DATA

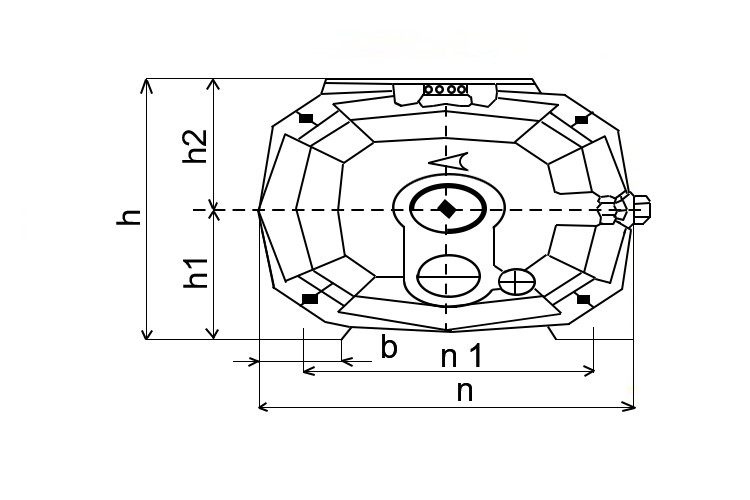

| Input Power | Current | Capacitor | Size | Total Head | Injector Type | Sect. H | Capacity l/min At discharge head m | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.37 | 0.5 | 2.4 | 16 | 1.25″ x 1″ x 1″ | 50 | E20 | 10 | 42 | 18 | 15 |
| E20 | 15 | 25 | 16 | 10 | ||||||
| E30 | 20 | 20 | 10 | 7 | ||||||
